SHAFT COLLAR QUICK CLAMPING MPN:LVO-MSP-24-A
SHAFT COLLAR QUICK CLAMPING

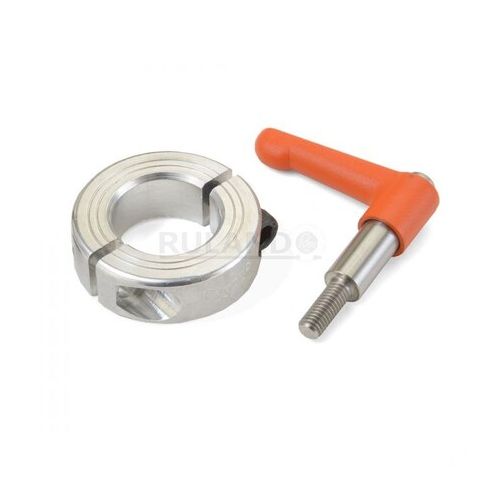

The RULAND Quick Clamping Shaft Collar is a reliable and efficient solution for applications requiring precise shaft positioning and secure clamping. Its 2-piece design and aluminum construction provide durability and resistance to corrosion, while the stainless steel screw ensures a secure fastening. With a bore diameter of 24mm and an outside diameter of 45mm, this collar is ideal for use in machinery, equipment, and automation systems where quick and easy adjustments are necessary. Its compact size and lightweight design make it perfect for applications where space is limited, and its quick clamping feature allows for rapid setup and teardown.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar.
- Aluminum construction provides a lightweight option for applications where weight is a consideration.
- Screw seating torque of 16 N-m ensures secure attachment to the shaft.
Top product applications:
- Positioning of shafts in machinery and equipment
- Mounting of pulleys and sprockets
- Attachment of bearings to shafts
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 24 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.19
Product info last updated on February 27, 2026 1:39pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
