Coupling Hub, Oldham Set, 16mm MPN:MOSC33-16-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8426783

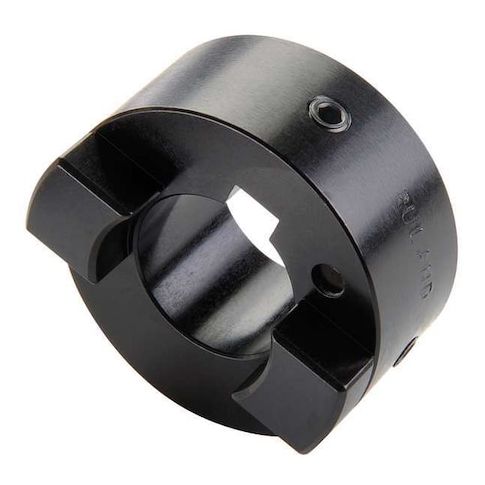

Coupling Hub, Oldham Set, 16mm
The RULAND Coupling Hub is a precision motion control component designed for high-performance applications. Its angular misalignment capability of 0.5 degrees and axial motion of 0.15 mm make it ideal for use in robotics, medical devices, and other precision machinery. The hub's aluminum construction and set screw locking mechanism provide secure and reliable operation. With a maximum speed of 4,500 RPM and a bore diameter of 16 mm, this coupling hub is suitable for a wide range of applications, including CNC machines, industrial automation, and aerospace equipment. Its compact size and precision engineering make it a valuable component for demanding motion control systems.
Top product features:
- Angular Misalignment up to 0.5 degrees
- Axial Motion up to 0.15 mm
- Shaft Locking through Set Screw with 2.2 N-m Screw Seating Torque
Top product applications:
- Gearbox Coupling Hub Replacement
- High-Speed Power Transmission Systems
- Precision Measuring Instrumentation
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOSC33, Outside Diameter 33.3 mm, Over-Standard Parallel Misalignment 3.33 mm, Parallel Misalignment 0.2 mm, Coupling Overall Length 47.6 mm, Hub Material Aluminum, Length through Bore 15 mm, System of Measurement Metric, Bore Diameter 16 mm, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Set Screw, Keyway Depth 2.4 mm, Keyway Width 5 mm, Screw Seating Torque 2.2 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.40
- Package Weight: 0.18
Product info last updated on February 22, 2026 7:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
