Coupling, 4 Beam Set Screw, 12mmx10mm MPN:MWS30-12-10-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8424184

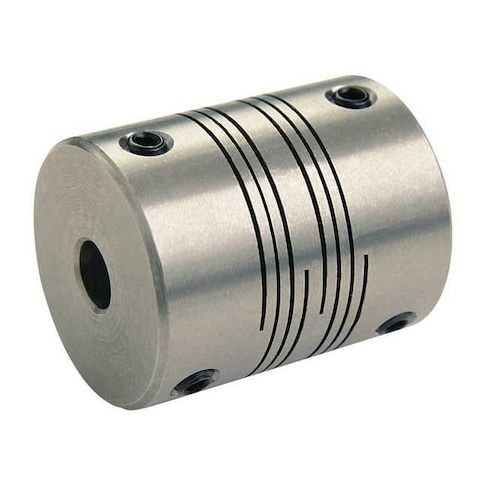

Coupling, 4 Beam Set Screw, 12mmx10mm
The RULAND 4 Beam Set Screw Coupling is a high-performance motion control coupling designed for applications requiring precise angular misalignment and high torque transmission. With a maximum speed of 6,000 RPM and a maximum torque of 10 N-m, this coupling is ideal for use in robotics, medical devices, and other precision machinery. Its stainless steel construction and set screw shaft locking ensure durability and reliability. The coupling's compact design and metric bore sizes make it suitable for a wide range of applications, including motion control systems, servo motors, and precision gearboxes. It's perfect for applications requiring high precision and reliability.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in installation and operation.
- Maximum speed of 6,000 RPM enables high-performance applications.
- Torsional stiffness of 2.17 N-m/Deg provides stability and resistance to shock loads.
Top product applications:
- Gearboxes
- Robotics
- Machine Tools
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 12 mm, Bore Diameter 2 10 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 10 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 2.17 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 14.2 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.26
Product info last updated on February 12, 2026 10:04am UTC
Category: Bearings, V-belts and Power Transmission Equipment
