Coupling, Bellows Clamp, 24mmx24mm MPN:MBC51-24-24-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8406395

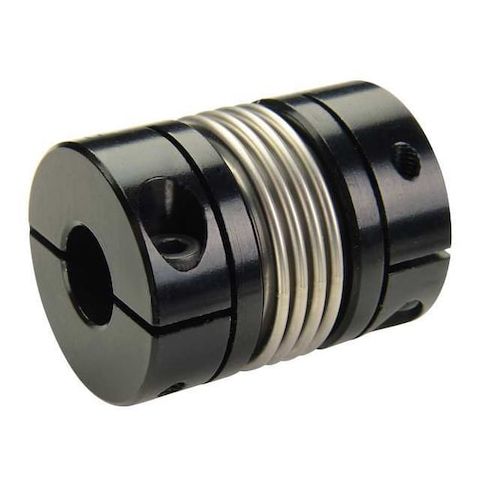

Coupling, Bellows Clamp, 24mmx24mm
The RULAND Bellows Clamp Coupling is a high-performance motion control solution ideal for applications requiring precise alignment and flexibility. Suitable for use in high-speed and high-torque applications, this coupling features a stainless steel bellows and aluminum hub, providing exceptional durability and resistance to fatigue. With a maximum speed of 10,000 RPM and maximum torque of 45.2 N-m, it is perfect for use in robotics, medical devices, and other precision machinery. Its compact design and clamp-on shaft locking mechanism make it easy to integrate and maintain, offering a reliable and efficient solution for a wide range of industrial and commercial applications.
Top product features:
- Motion control coupling for high-speed applications
- Handles parallel misalignment of up to 0.25 mm
- Provides a maximum torque of 45.2 N-m in a compact design
Top product applications:
- Robotics and automation systems
- Precision machinery assembly
- High-speed machinery and equipment
Motion Control Coupling, Bore Diameter 1 24 mm, Bore Diameter 2 24 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.44
Product info last updated on March 9, 2026 6:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
