Coupling, 6 Beam Clamp, 11mmx11mm MPN:FCMR38-11-11-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8361306

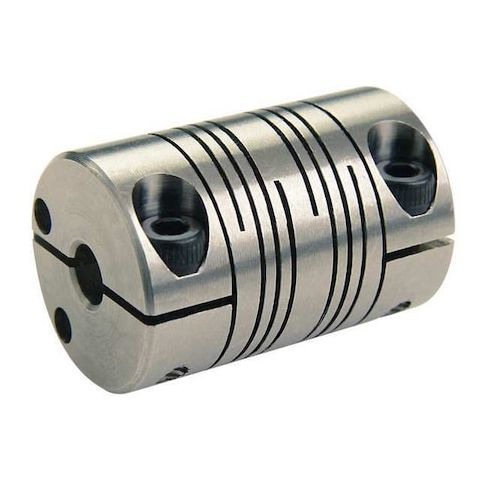

Coupling, 6 Beam Clamp, 11mmx11mm
The RULAND 6 Beam Clamp Coupling is a high-performance motion control coupling designed for demanding applications. With a maximum speed of 6,000 RPM and maximum torque of 21.52 N-m, it can handle a wide range of industrial and commercial uses. Its stainless steel construction and angular misalignment of 3 degrees make it ideal for applications with high precision and reliability requirements. Suitable for use in robotics, medical devices, and other precision machinery, this coupling provides smooth operation and long service life. Its compact size and easy installation make it a versatile solution for various industries and applications.
Top product features:
- Angular misalignment of 3 degrees allows for flexible coupling in applications with limited design space.
- The stainless steel material provides resistance to corrosion and wear.
- The clamp-on shaft locking type enables easy installation and removal without tools.
Top product applications:
- High-precision robotics and automation systems
- Gearboxes and gearmotors in precision machinery
- Medical devices and laboratory equipment
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 11 mm, Bore Diameter 2 11 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 38.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 21.52 N-m, Axial Motion 0.38 mm, Overall Length 57.2 mm, Parallel Misalignment 0.76 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 5.26 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 27.3 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.49
Product info last updated on February 23, 2026 9:39am UTC
Category: Bearings, V-belts and Power Transmission Equipment
