Coupling, 4 Beam Set Screw, 3/32inx 3/32in MPN:PSR8-1.5-1.5-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8352486

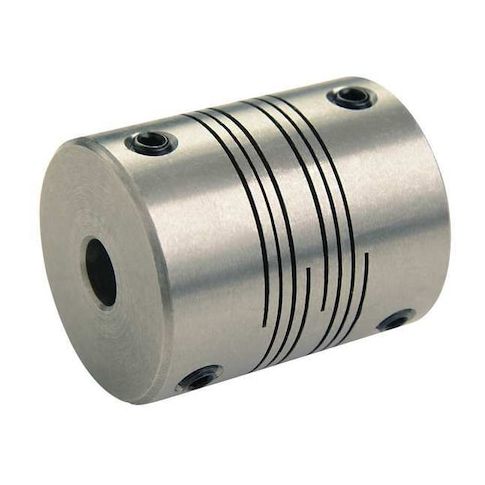

Coupling, 4 Beam Set Screw, 3/32inx 3/32in
The Ruland 4 Beam Set Screw Coupling is a high-performance motion control solution designed for precise angular misalignment applications. With a maximum speed of 6,000 RPM and maximum torque of 11 in-lb, this coupling is ideal for use in high-speed machinery, robotics, and precision equipment. Its stainless steel construction ensures durability and resistance to corrosion, while its set screw shaft locking mechanism provides secure and reliable operation. Suitable for applications in aerospace, medical devices, and industrial automation, this coupling offers improved performance, reduced maintenance, and increased system reliability. Its compact design also makes it easy to integrate into existing systems.
Top product features:
- Angular Misalignment 3 Degrees
- Maximum Speed 6,000 RPM
- Torsional Stiffness 2.72 in-lb/Deg
Top product applications:
- Positioning of machinery in tight spaces
- Precision measurement equipment
- High-speed automation systems
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/32 in, Bore Diameter 2 3/32 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 11 in-lb, Axial Motion 0.005 in, Overall Length 3/4 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 2.72 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 0.4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.50
- Package Weight: 0.08
Product info last updated on February 19, 2026 7:53pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
