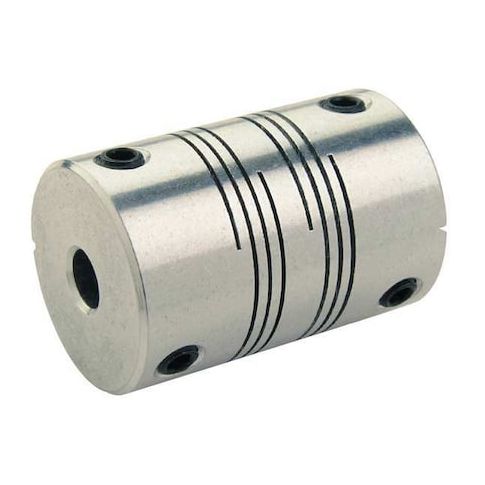

Coupling, 6 Beam Set Screw, 9mmx9mm MPN:FSMR25-9-9-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8349643
Coupling, 6 Beam Set Screw, 9mmx9mm
The RULAND 6 Beam Set Screw Coupling is a high-performance motion control coupling designed for applications requiring precise alignment and stability. Suitable for use in various industries, including robotics, medical devices, and aerospace, this coupling features a 3-degree angular misalignment, 0.25mm axial motion, and 0.38mm parallel misalignment, ensuring smooth operation and minimizing wear. With a maximum speed of 6,000 RPM and maximum torque of 3.73 N-m, it's ideal for applications requiring high rotational speeds and precise control. Its compact design and aluminum construction make it an excellent choice for a wide range of motion control applications.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in installation
- Torsional stiffness of 1.16 N-m/Deg provides stable transmission of power
- Shaft locking type set screw enables secure attachment to rotating shafts
Top product applications:
- Robotics and Automation
- Precision Machinery
- Gearbox and Motor Coupling
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 9 mm, Bore Diameter 2 9 mm, Coupling Material Aluminum, Coupling Outside Diameter 25.4 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.73 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.16 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 18.3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 0.52
Product info last updated on March 1, 2026 1:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
