Coupling, 4 Beam Clamp, 12mmx11mm MPN:MWC30-12-11-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8308876

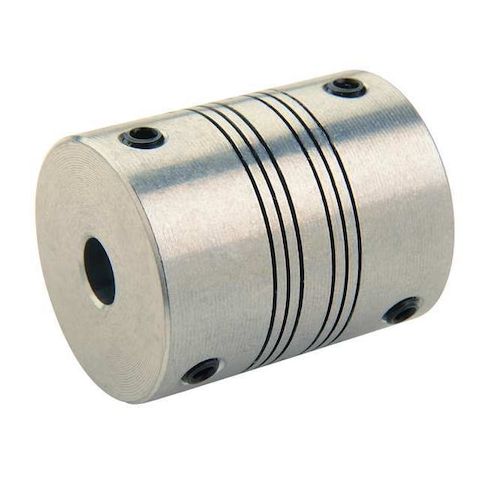

Coupling, 4 Beam Clamp, 12mmx11mm
The RULAND 4 Beam Clamp Coupling is a versatile and reliable motion control solution for applications requiring angular misalignment and high-speed operation. Suitable for use in various industries, including robotics, medical devices, and automation, this coupling features a compact design with a bore diameter of 12mm and 11mm, allowing for flexible installation options. With a maximum speed of 6,000 RPM and a maximum torque of 6.6 N-m, it can handle demanding applications with ease. Its aluminum construction provides excellent durability and resistance to wear, making it an ideal choice for applications requiring high precision and reliability.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in application.
- Torsional stiffness of 1.08 N-m/Deg enables efficient power transmission.
- Clamp-on shaft locking mechanism securely attaches to round shafts.
Top product applications:
- Robotics and Automation
- Gearbox and Motor Mounting
- Precision Instrumentation and Measurement Systems
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 12 mm, Bore Diameter 2 11 mm, Coupling Material Aluminum, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 6.6 N-m, Axial Motion 0.25 mm, Overall Length 38 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 1.08 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 18.2 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 3, 2026 12:31pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
