Coupling, 4 Beam Clamp, 10mmx9mm MPN:MWC25-10-9-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8271331

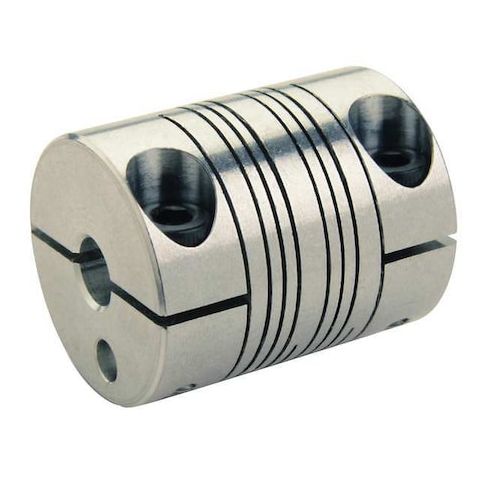

Coupling, 4 Beam Clamp, 10mmx9mm
The Ruland 4 Beam Clamp Coupling is a versatile motion control component designed for precise angular misalignment applications. With a maximum speed of 6,000 RPM and torque of 3.1 N-m, it's suitable for a variety of industries, including robotics, medical devices, and automation. Its aluminum construction and clamp-on shaft locking type ensure durability and ease of installation. The coupling's ability to handle 3 degrees of angular misalignment and 0.38 mm of parallel misalignment makes it ideal for applications where precision is critical, such as in precision machinery, gearboxes, and servo motors. Its compact size also makes it suitable for space-constrained designs.
Top product features:
- Angular misalignment up to 3 degrees
- Maximum torque of 3.1 N-m
- Torsional stiffness of 0.57 N-m/Deg
Top product applications:
- Positioning and locating of precision equipment in medical and scientific instruments
- Automated assembly and inspection systems
- High-speed machinery and equipment in the aerospace industry
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 9 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.1 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.57 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.2 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 4, 2026 7:04am UTC
Category: Bearings, V-belts and Power Transmission Equipment
