Coupling, 6 Beam Set Screw, 16mmx15mm

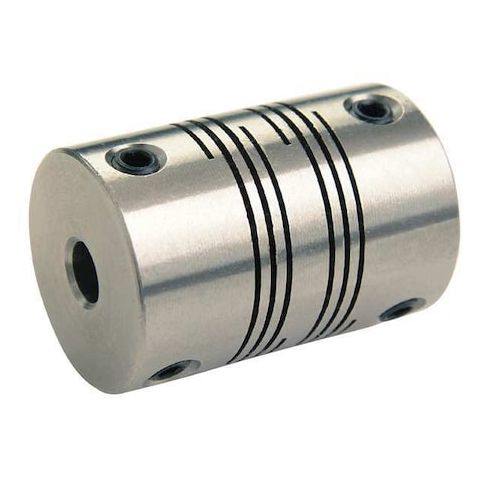

The RULAND 6 Beam Set Screw Coupling is a high-performance motion control solution for precision applications. Designed for angular misalignment of up to 3 degrees, this stainless steel coupling features a bore diameter of 1.6 mm and 2 x 15 mm, with a maximum speed of 6,000 RPM and torque of 19.82 N-m. Ideal for applications where precision and reliability are critical, such as in medical devices, aerospace, and industrial automation. Its compact design and low axial motion of 0.38 mm make it suitable for use in tight spaces, ensuring smooth and efficient power transmission.
Top product features:
- Angular misalignment of up to 3 degrees
- Torsional stiffness of 3.7 N-m/Deg
- Shaft locking is achieved through a set screw locking mechanism
Top product applications:
- Motion Control in Robotics
- Gearbox and Motor Coupling
- High-Speed Power Transmission Systems
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 16 mm, Bore Diameter 2 15 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 38.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 19.82 N-m, Axial Motion 0.38 mm, Overall Length 57.2 mm, Parallel Misalignment 0.76 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 3.7 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 27.3 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 1.50
