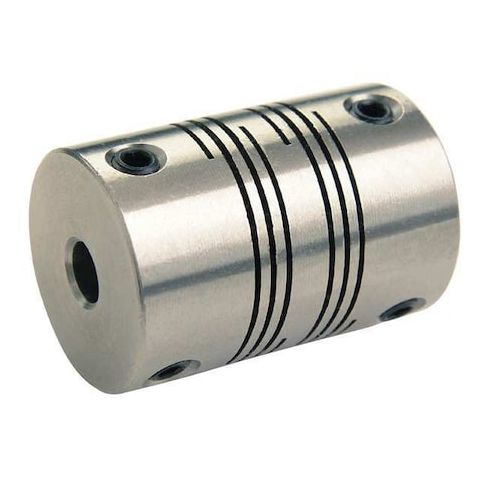

Coupling, 6 Beam Set Screw, 14mmx14mm MPN:FSMR32-14-14-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8194916
Coupling, 6 Beam Set Screw, 14mmx14mm
This Ruland motion control coupling offers precise angular misalignment up to 3 degrees, making it ideal for applications requiring high accuracy and reliability. With a maximum speed of 6,000 RPM and torque of 5.08 N-m, it can handle demanding tasks. The aluminum construction and set screw design provide a secure and durable connection between shafts. Suitable for use in various industries, including robotics, automation, and medical equipment, this coupling ensures smooth and precise motion transfer, reducing wear and tear on connected components. Its compact design and ease of installation make it a valuable addition to any motion control system.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in applications with slight misalignment.
- Axial motion of 0.25 mm enables smooth operation in applications with axial movement.
- Torsional stiffness of 1.41 N-m/Deg provides reliable torque transmission and resistance to shock loads.
Top product applications:
- Gearboxes and gearmotors
- Robotics and automation systems
- Precision machinery and equipment
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 14 mm, Bore Diameter 2 14 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 5.08 N-m, Axial Motion 0.25 mm, Overall Length 44.5 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.41 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 21.4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.49
Product info last updated on February 23, 2026 11:18pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
