Coupling Hub, Oldham Clamp, 12mm MPN:MOCC51-12-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8189763

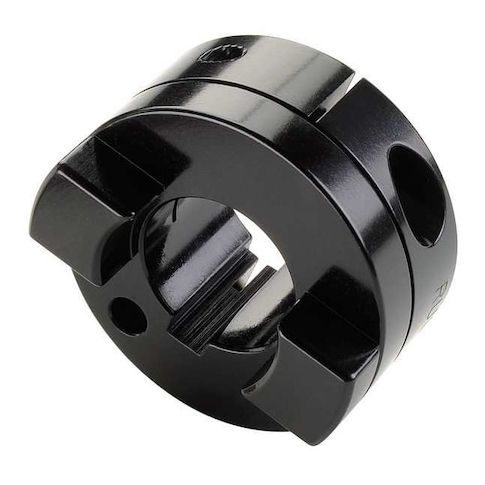

Coupling Hub, Oldham Clamp, 12mm
The RULAND Coupling Hub is a precision-engineered motion control component designed for applications requiring high accuracy and reliability. Its angular misalignment of 0.5 degrees and axial motion of 0.2 mm make it ideal for use in robotics, medical devices, and precision machinery. The hub's aluminum construction and clamp-on design ensure secure and easy installation. With a maximum speed of 4,500 RPM, it's suitable for a wide range of applications, including gearboxes, motors, and pumps. Its compact size and lightweight design make it an excellent choice for space-constrained and high-speed applications, providing smooth and efficient motion control.
Top product features:
- Angular misalignment up to 0.5 degrees
- Axial motion of 0.2 mm
- Clamp-on shaft locking
Top product applications:
- Gearboxes and gearmotors
- Robotics and automation systems
- Conveyor systems and material handling equipment
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCC51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 12 mm, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 1.9 mm, Keyway Width 4 mm, Screw Seating Torque 9.5 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.20
- Package Weight: 0.25
Product info last updated on March 26, 2026 9:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
