Coupling, 6 Beam Set Screw, 8mmx7mm MPN:FSMR25-8-7-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8188871

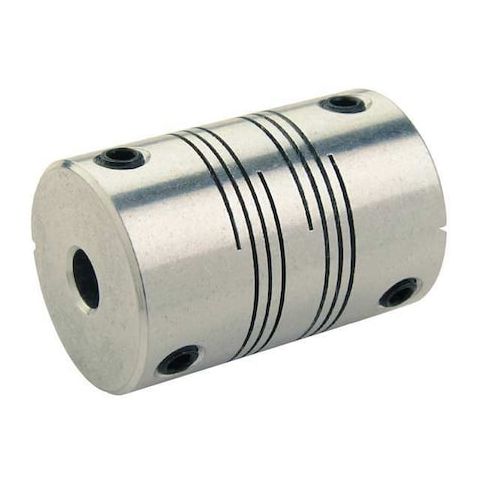

Coupling, 6 Beam Set Screw, 8mmx7mm
The Ruland 6 Beam Set Screw Coupling is a high-performance motion control coupling designed for precise angular misalignment up to 3 degrees. Built with aluminum, this coupling features a compact 25.4mm outside diameter and a maximum speed of 6,000 RPM. Ideal for applications requiring high torque and stiffness, such as robotics, medical devices, and precision machinery, this coupling provides a maximum torque of 3.73 N-m and a torsional stiffness of 1.16 N-m/Deg. Its set screw locking mechanism ensures secure shaft alignment, making it suitable for a wide range of industries where precision and reliability are paramount.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in application
- Torsional stiffness of 1.16 N-m/Deg enables precise motion control
- Shaft locking via set screws provides secure connection
Top product applications:
- Robotics and Automation
- Medical Equipment
- Aerospace Engineering
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 7 mm, Coupling Material Aluminum, Coupling Outside Diameter 25.4 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.73 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 1.16 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 18.3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 0.52
Product info last updated on March 21, 2026 11:51pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
