Coupling, 4 Beam Set Screw, 8mmx8mm MPN:MWS25-8-8-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8176411

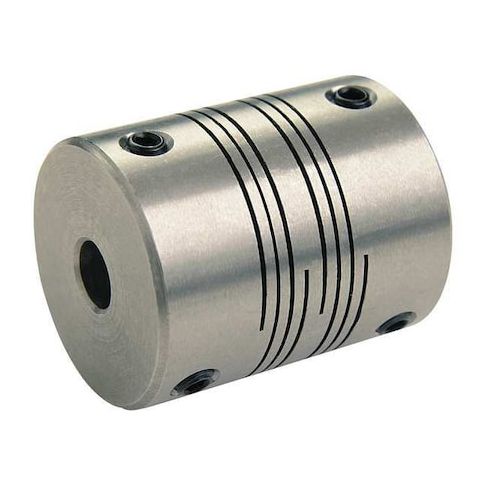

Coupling, 4 Beam Set Screw, 8mmx8mm
The RULAND 4 Beam Set Screw Coupling is a high-performance motion control coupling designed for applications that require precise angular misalignment and high torque transmission. With a stainless steel construction and a maximum speed of 6,000 RPM, this coupling is ideal for use in industrial automation, robotics, and medical device manufacturing. Its compact design and low axial motion make it suitable for use in confined spaces and applications where vibration and noise are a concern. The coupling's high torsional stiffness and maximum torque of 5.1 N-m make it a reliable choice for demanding applications.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in assembly and installation.
- Maximum speed of 6,000 RPM enables high-performance applications.
- Shaft locking via set screw provides secure and reliable connection.
Top product applications:
- Robotics and automation systems
- High-speed machinery and equipment
- Precision medical device applications
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 8 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 5.1 N-m, Axial Motion 0.25 mm, Overall Length 24 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.72 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 11.7 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.80
- Package Weight: 0.13
Product info last updated on February 4, 2026 6:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
