Coupling Hub, Oldham Clamp, 11mm MPN:MOCT33-11-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8176034

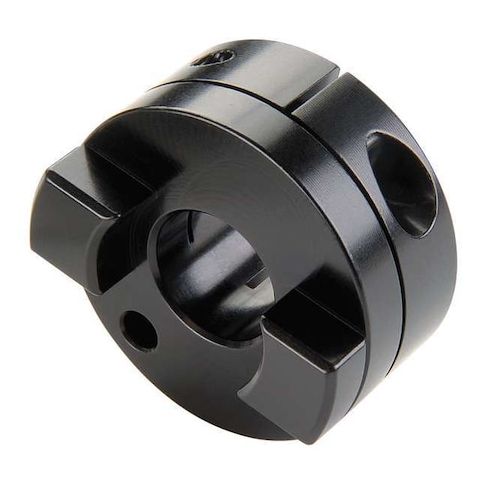

Coupling Hub, Oldham Clamp, 11mm
The RULAND Motion Control Coupling Hub is a precision-engineered solution for applications requiring high performance and reliability. Designed for angular misalignment of up to 0.5 degrees and axial motion of 0.15 mm, this coupling hub ensures smooth operation and extends the lifespan of connected shafts. Suitable for applications in industrial automation, robotics, and medical devices, the MOCT33 hub features a compact design with a 11mm round bore and clamp-on shaft locking. With a maximum speed of 4,500 RPM and a lead time of just 10 days, this coupling hub is an ideal choice for demanding motion control applications.
Top product features:
- Angular Misalignment 0.5 Degrees allows for flexible coupling in applications with slight angular deviations.
- Axial Motion 0.15 mm enables the coupling to accommodate minor axial shifts during operation.
- Parallel Misalignment 0.2 mm and Over-Standard Parallel Misalignment 3.33 mm allow for flexible coupling in applications with slight parallel deviations.
Top product applications:
- Gearboxes and gearmotors
- Pumps and motors
- Conveyors and material handling systems
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOCT33, Outside Diameter 33.3 mm, Over-Standard Parallel Misalignment 3.33 mm, Parallel Misalignment 0.2 mm, Coupling Overall Length 47.6 mm, Hub Material Aluminum, Length through Bore 15 mm, System of Measurement Metric, Bore Diameter 11 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 2.1 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.40
- Package Weight: 0.13
Product info last updated on February 4, 2026 10:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
