Coupling, 6 Beam Set Screw, 3/8in.x 1/4in. MPN:FSR16-6-4-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8166767

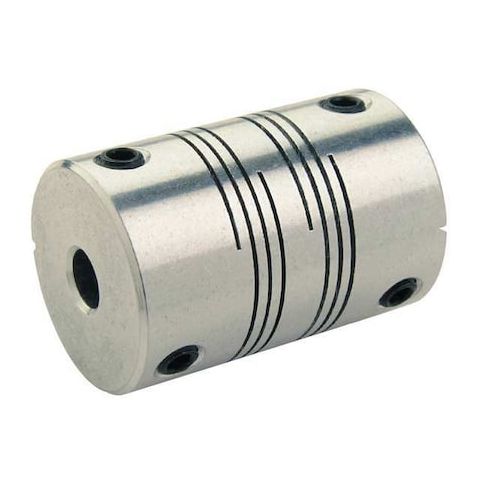

Coupling, 6 Beam Set Screw, 3/8in.x 1/4in.
This Ruland 6-beam motion control coupling is designed for applications requiring high precision and flexibility. With a stainless steel construction and set screw shaft locking, it can withstand demanding environments and maintain accuracy. The coupling's ability to handle angular misalignment of up to 3 degrees and parallel misalignment of 0.015 inches makes it suitable for applications with limited space and varying load conditions. Suitable for use in medical, laboratory, and industrial equipment, this coupling provides reliable performance in high-speed applications up to 6,000 RPM and is available in different bore sizes to meet specific needs.
Top product features:
- Angular Misalignment of 3 Degrees allows for flexibility in installation and operation.
- Axial Motion of 0.01 in enables smooth and quiet operation even under varying loads.
- Torsional Stiffness of 21.74 in-lb/Deg provides high precision and stability in high-speed applications.
Top product applications:
- Mechanical Power Transmission
- Automotive Steering Systems
- Medical Device Manufacturing
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/8 in, Bore Diameter 2 1/4 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 in, Maximum Speed 6,000 RPM, Maximum Torque 50 in-lb, Axial Motion 0.01 in, Overall Length 1 1/2 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 21.74 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 0.7 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 0.52
