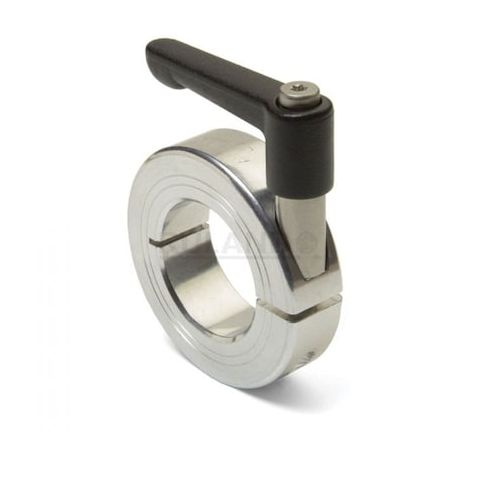

SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-25-A
SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a reliable and efficient solution for securing shafts in various industrial applications. Its aluminum construction and stainless steel screw provide a durable and corrosion-resistant design. The collar's 1-piece construction and quick clamping mechanism make it easy to install and remove, reducing downtime and increasing productivity. Suitable for use in a range of industries, including aerospace, automotive, and manufacturing, this shaft collar is ideal for applications where precision and reliability are paramount, such as in gearboxes, motors, and other machinery. Its compact design also makes it perfect for use in tight spaces.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar
- Collar is constructed as a single piece for increased strength and durability
- Screw seating torque is designed to provide secure attachment to the shaft
Top product applications:
- Shaft collars are commonly used in precision machinery for positioning and locating applications.
- Shaft collars can be used as a guide or stop in a mechanical assembly.
- Shaft collars are often used in conjunction with bearings to locate and secure shafts in applications such as gearboxes and pumps.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 25 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.19
Product info last updated on February 24, 2026 5:06pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
