SHAFT COLLAR QUICK CLAMPING MPN:LVO-MCL-30-A
SHAFT COLLAR QUICK CLAMPING

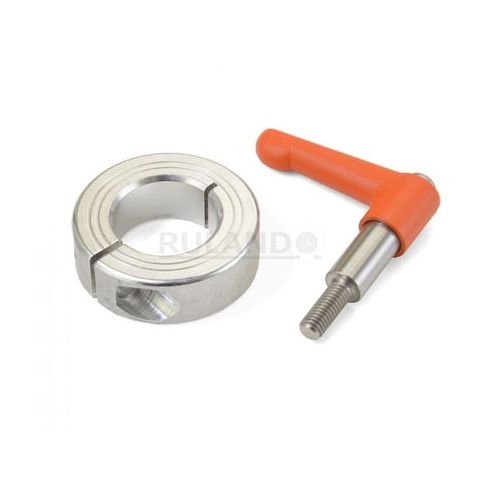

The Ruland Quick Clamping Shaft Collar is a versatile and efficient solution for various industrial applications. Its aluminum construction and 2024 grade material ensure durability and resistance to corrosion. The collar's 1-piece design and stainless steel screw provide a secure and long-lasting connection. With a bore diameter of 30mm and outside diameter of 54mm, it can be used in a wide range of applications, including conveyor systems, machinery, and robotics. The quick clamping feature allows for easy installation and removal, reducing downtime and increasing productivity. Ideal for use in industries such as manufacturing, aerospace, and automotive.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the collar
- One-piece construction provides a strong and rigid design
- Stainless steel screw with a seating torque of 16 N-m ensures secure attachment
Top product applications:
- Positioning of shafts in applications where quick release is required such as in test and measurement equipment
- Use in applications where precise positioning is necessary such as in medical devices
- Mounting of rotating shafts in applications such as in conveyor systems
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 30 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.24
Product info last updated on March 2, 2026 10:11am UTC
Category: Bearings, V-belts and Power Transmission Equipment
