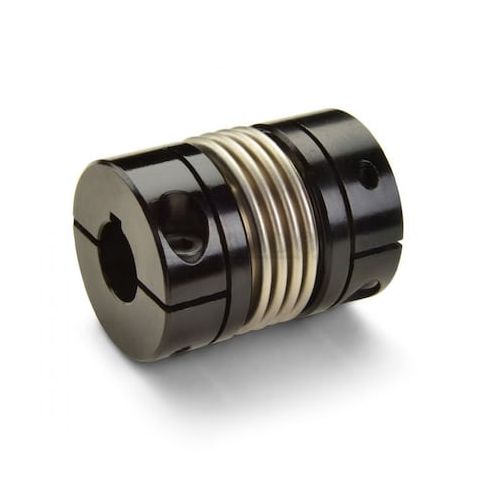

Bellows Coupling MPN:BCK50-45MM-1 3/4"-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G808677197
Bellows Coupling
The RULAND Bellows Coupling is a versatile and reliable solution for connecting shafts in demanding applications. Its stainless steel bellows design provides a flexible and durable connection, allowing for up to 0.012 inches of parallel misalignment and 1/4 inch of angular misalignment. With a maximum speed of 10,000 RPM and torque of 1,350 lb-in, this coupling is suitable for high-speed and high-torque applications in industries such as aerospace, medical, and robotics. Its aluminum hub and clamp-on shaft locking type make it easy to install and maintain, making it an ideal choice for a wide range of applications.
Top product features:
- Clamp On Shaft Locking Type allows for easy connection and disconnection of shafts.
- Maximum Torque of 1,350 lb-in enables the coupling to handle high rotational forces.
- Parallel Misalignment of 0.012 in accommodates minor shaft misalignment for smooth operation.
Top product applications:
- Power transmission in industrial machinery
- Automotive engine mounts
- Fluid power systems
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 1 3/4 in, Coupling Outside Diameter 3.13 in, Maximum Speed 10,000 RPM, Maximum Torque 1,350 lb-in, Hub Material Aluminum, Overall Length 3.82 in, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Clearance Diameter 3.13 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 1.75 in, Length Through Bore 2 1.75 in, Parallel Misalignment 0.012 in, Bore Type Round Keyed
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on March 18, 2026 5:48am UTC
Category: Bearings, V-belts and Power Transmission Equipment
