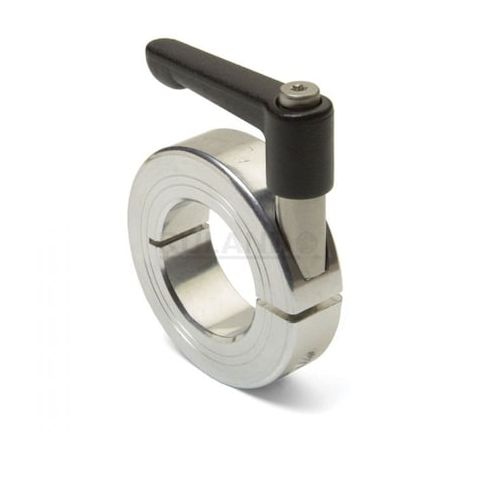

SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-11-A
SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a high-performance solution for applications requiring rapid and secure shaft attachment. Made from durable aluminum alloy 2024, this one-piece design features a stainless steel screw for exceptional holding power and resistance to corrosion. With a bore diameter of 11mm and an outside diameter of 28mm, this shaft collar is ideal for use in precision machinery, gearboxes, and other equipment where quick and easy shaft attachment is critical. Its compact size and lightweight design make it perfect for a wide range of industries, including aerospace, medical, and industrial automation.
Top product features:
- Quick Clamping allows for easy installation and removal of the shaft collar.
- The collar is constructed as a single piece for increased durability and reduced assembly time.
- The aluminum material provides a lightweight yet strong design.
Top product applications:
- Shaft positioning and alignment in robotics and automation systems
- Positioning and holding shafts in gearboxes and motors
- Holding shafts in power transmission systems and conveyor belts
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 11 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 28 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 4.6 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 22, 2026 2:38am UTC
Category: Bearings, V-belts and Power Transmission Equipment
