Coupling, 4 Beam Clamp, 11mmx9mm MPN:MWC30-11-9-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8046227

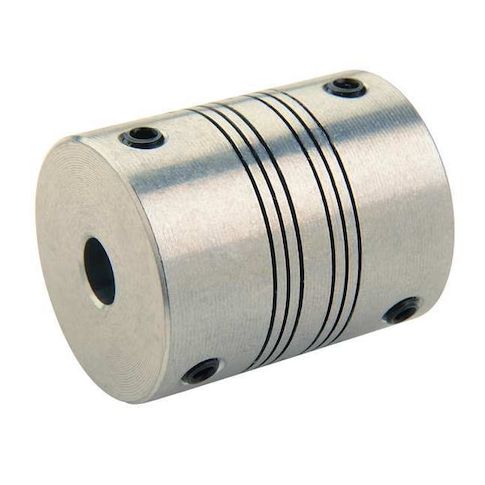

Coupling, 4 Beam Clamp, 11mmx9mm
The RULAND 4 Beam Clamp Coupling is a versatile motion control solution for applications requiring high precision and reliability. Designed for use in systems with angular misalignment of up to 3 degrees, this coupling features a compact aluminum design with a bore diameter of 11mm and 9mm, allowing for flexibility in shaft size. Its high torsional stiffness and low axial motion make it ideal for applications such as robotics, medical devices, and precision machinery. With a maximum speed of 6,000 RPM and maximum torque of 6.6 N-m, this coupling is suitable for a wide range of industries, including aerospace and automotive.
Top product features:
- Angular misalignment capability up to 3 degrees
- Clamp-on shaft locking for easy installation and removal
- Torsional stiffness of 1.08 N-m/Deg for smooth power transmission
Top product applications:
- Robotics and automation
- Precision machinery
- Medical equipment
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 11 mm, Bore Diameter 2 9 mm, Coupling Material Aluminum, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 6.6 N-m, Axial Motion 0.25 mm, Overall Length 38 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 1.08 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 18.2 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on April 3, 2026 10:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
