Coupling Hub, Oldham Clamp, 15mm MPN:MOCT41-15-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8038274

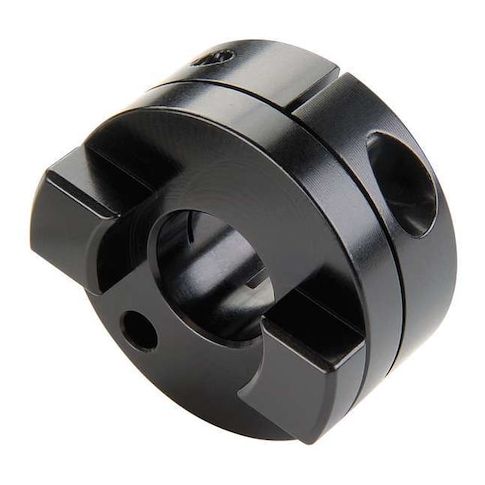

Coupling Hub, Oldham Clamp, 15mm
The RULAND Coupling Hub, Oldham Clamp, 15mm is a precision-engineered motion control component designed for applications requiring high accuracy and reliability. Its angular misalignment of 0.5 degrees and axial motion of 0.15 mm make it ideal for use in precision machinery, robotics, and automation systems. With a maximum speed of 4,500 RPM, this coupling hub is suitable for a wide range of applications, including medical devices, aerospace equipment, and industrial machinery. Its compact size and lightweight design make it easy to integrate into complex systems, providing a reliable and efficient solution for precise motion control.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexibility in motion control applications.
- Axial motion of 0.15 mm enables the coupling to absorb movement and vibrations.
- Clamp-on shaft locking provides a secure and easy installation method.
Top product applications:
- Power transmission systems for industrial equipment
- Gearboxes and motors in robotics and automation
- High-speed machining centers and spindle drives
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOCT41, Outside Diameter 41.3 mm, Over-Standard Parallel Misalignment 4.13 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 50.8 mm, Hub Material Aluminum, Length through Bore 18 mm, System of Measurement Metric, Bore Diameter 15 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.70
- Package Weight: 0.20
Product info last updated on February 19, 2026 11:52am UTC
Category: Bearings, V-belts and Power Transmission Equipment
