Coupling, Bellows Clamp, 25mmx24mm MPN:MBC51-25-24-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8033751

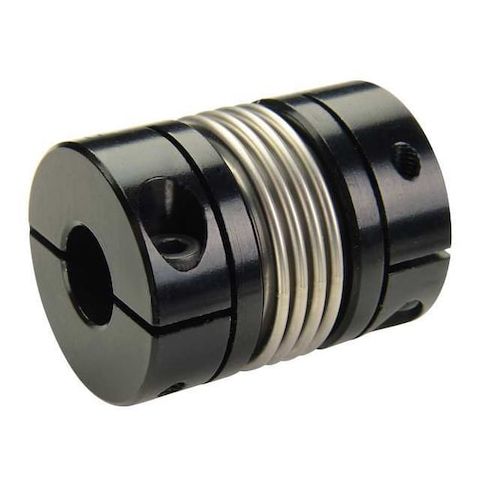

Coupling, Bellows Clamp, 25mmx24mm
The RULAND 25mmx24mm Bellows Clamp Coupling is a high-performance motion control solution for precision applications. Its unique bellows design allows for flexibility and misalignment compensation, making it ideal for use in high-speed and high-torque systems. With a maximum speed of 10,000 RPM and a maximum torque of 45.2 N-m, this coupling is suitable for applications such as robotics, medical devices, and aerospace. The aluminum hub and stainless steel bellows ensure durability and resistance to corrosion, while the clamp-on shaft locking design provides easy installation and maintenance. Its compact size and lightweight design make it perfect for use in space-constrained environments.
Top product features:
- Motion control coupling design allows for parallel misalignment up to 0.25 mm.
- The coupling can operate at a maximum speed of 10,000 RPM.
- The bellows material is stainless steel, providing resistance to corrosion and wear.
Top product applications:
- Motion control coupling for precision machinery
- High-speed rotating equipment such as turbines and gearboxes
- Applications requiring high torque and misalignment capabilities, such as industrial automation systems
Motion Control Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 24 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.44
Product info last updated on March 30, 2026 8:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
