Coupling, 6 Beam Set Screw, 3/16inx 3/16in MPN:FSR10-3-3-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8005094

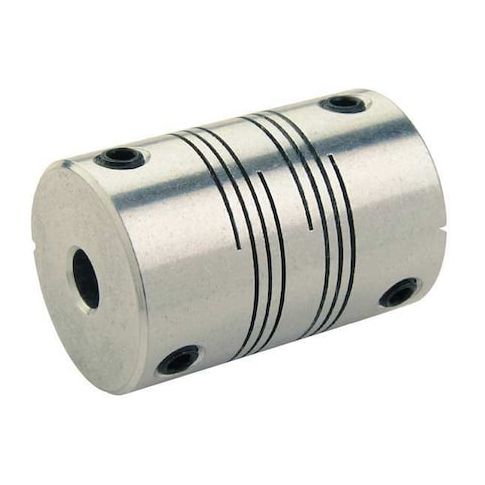

Coupling, 6 Beam Set Screw, 3/16inx 3/16in
The RULAND 6 Beam Set Screw Coupling is a precision motion control coupling designed for applications requiring high accuracy and reliability. Its aluminum construction and set screw shaft locking provide a secure and stable connection, while its angular misalignment capabilities of up to 3 degrees ensure smooth operation. Suitable for applications such as robotics, medical devices, and precision machinery, this coupling offers benefits including reduced vibration, increased torque capacity, and improved system accuracy. Its compact size and low weight make it an ideal choice for applications where space and weight are limited.
Top product features:
- Angular misalignment of 3 degrees
- Axial motion of 0.005 in
- Torsional stiffness of 2.78 in-lb/Deg
Top product applications:
- Gearbox to Motor Coupling
- Motion Control System
- Robotics Arm
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/16 in, Bore Diameter 2 3/16 in, Coupling Material Aluminum, Coupling Outside Diameter 5/8 in, Maximum Speed 6,000 RPM, Maximum Torque 13 in-lb, Axial Motion 0.005 in, Overall Length 1 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 2.78 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 0.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.60
- Package Weight: 0.06
Product info last updated on February 2, 2026 3:51pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
