Coupling, 4 Beam Set Screw, 10mmx6mm MPN:MWS25-10-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8002626

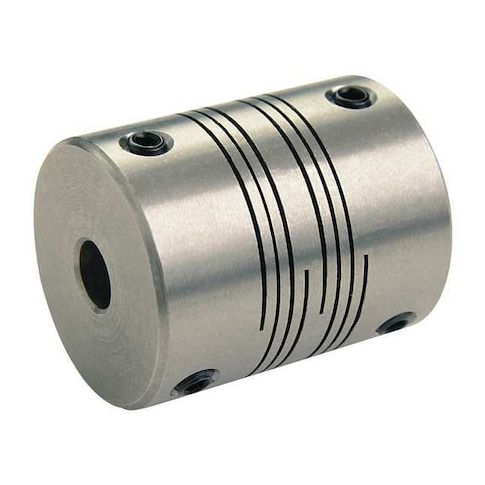

Coupling, 4 Beam Set Screw, 10mmx6mm
The RULAND 4 Beam Set Screw Coupling is a high-performance motion control coupling designed for applications requiring precise angular misalignment and high-speed operation. With a maximum speed of 6,000 RPM and a maximum torque of 3.1 N-m, this coupling is ideal for use in robotics, automation, and precision machinery. Its aluminum construction and set screw shaft locking provide reliable and secure operation, while its compact design and low weight make it suitable for applications where space and weight are critical considerations. Suitable for use in a variety of industries, including aerospace, medical, and semiconductor manufacturing.
Top product features:
- Angular Misalignment of 3 Degrees allows for flexibility in shaft positioning.
- Torsional Stiffness of 0.57 N-m/Deg provides stability and resistance to twisting forces.
- Axial Motion of 0.25 mm accommodates slight movements and vibrations in the shaft.
Top product applications:
- Robotics and Automation
- Gearboxes and Motors
- Precision Machinery
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.1 N-m, Axial Motion 0.25 mm, Overall Length 24 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.57 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 11.7 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.60
- Package Weight: 0.07
Product info last updated on February 4, 2026 3:39pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
