Coupling, 6 Beam Set Screw, 6mmx5mm MPN:FSMR16-6-5-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7998891

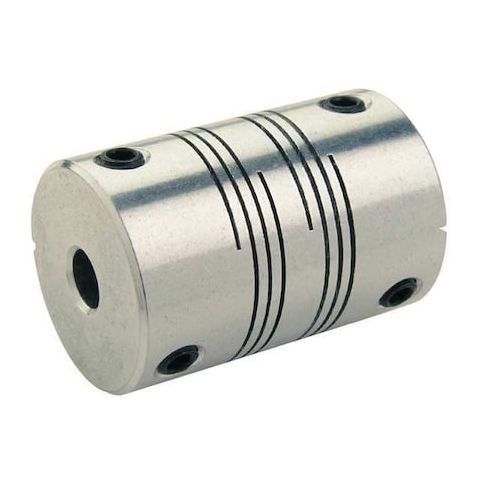

Coupling, 6 Beam Set Screw, 6mmx5mm
The Ruland 6 Beam Set Screw Coupling is a high-performance motion control coupling designed for precise angular misalignment up to 3 degrees. Featuring a bore diameter of 1.6 mm and 5 mm, this coupling is ideal for applications requiring high torque and stiffness, such as robotics, CNC machines, and medical equipment. Its aluminum construction and set screw locking mechanism provide reliable and repeatable performance. With a maximum speed of 6,000 RPM and axial motion of 0.13 mm, this coupling is suitable for a variety of industries, including aerospace, automotive, and industrial automation.
Top product features:
- Angular misalignment up to 3 degrees
- Torsional stiffness of 0.31 N-m/Deg
- Shaft locking via set screw
Top product applications:
- Robotics and Automation
- Gearhead and Servo Motor Applications
- High-Speed Spinning Equipment
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 6 mm, Bore Diameter 2 5 mm, Coupling Material Aluminum, Coupling Outside Diameter 15.9 mm, Maximum Speed 6,000 RPM, Maximum Torque 1.47 N-m, Axial Motion 0.13 mm, Overall Length 25.4 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.31 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 12.3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.60
- Package Weight: 0.06
Product info last updated on March 4, 2026 9:19pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
