Coupling Hub, Oldham Clamp, 14mm MPN:MOCC51-14-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7965081

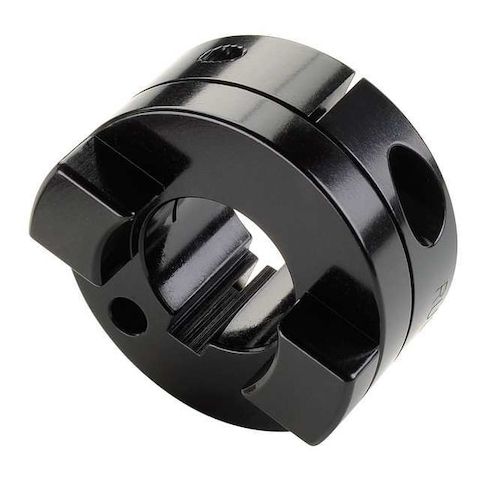

Coupling Hub, Oldham Clamp, 14mm
The RULAND Motion Control Coupling Hub is a precision-engineered solution for applications requiring high-speed, high-torque transmission of rotational motion. Featuring angular misalignment of 0.5 degrees and axial motion of 0.2 mm, this coupling hub ensures smooth operation even in demanding environments. Its compact design and aluminum construction make it ideal for use in robotics, medical devices, and other precision machinery. The MOCC51 model is perfect for applications requiring high-speed transmission, such as conveyor systems, packaging machinery, and CNC equipment, where its maximum speed of 4,500 RPM and over-standard parallel misalignment of 5.08 mm provide reliable performance.
Top product features:
- Angular misalignment up to 0.5 degrees
- Axial motion up to 0.2 mm
- Clamp on shaft locking mechanism
Top product applications:
- High-speed machinery applications where precise shaft alignment is required
- Precision gearboxes and servo motor systems
- High-precision robotics and automation systems
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCC51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 14 mm, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 2.4 mm, Keyway Width 5 mm, Screw Seating Torque 9.5 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.25
Product info last updated on February 5, 2026 9:31am UTC
Category: Bearings, V-belts and Power Transmission Equipment
