Coupling, 4 Beam Set Screw, 8mmx8mm MPN:MWS25-8-8-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7948997

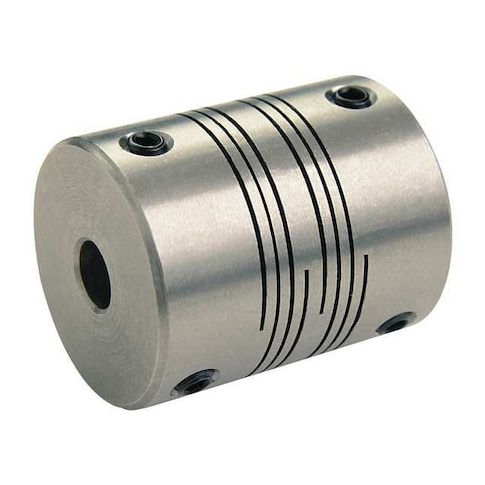

Coupling, 4 Beam Set Screw, 8mmx8mm
The RULAND 4 Beam Set Screw Coupling is a high-performance motion control solution for applications requiring precise angular misalignment and high torque transmission. This compact coupling features a bore diameter of 8mm, maximum speed of 6,000 RPM, and maximum torque of 3.42 N-m, making it ideal for use in robotics, automation, and precision machinery. Its aluminum construction and set screw shaft locking provide reliable and durable performance, while its small size and light weight make it suitable for a wide range of applications, including medical devices, aerospace, and industrial equipment.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in application
- Axial motion of 0.25 mm accommodates minor shaft deflections
- Torsional stiffness of 0.82 N-m/Deg enables high-speed operation
Top product applications:
- Gearbox output shaft to motor input shaft
- Robot arm assembly
- Precision machine tool spindle
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 8 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.42 N-m, Axial Motion 0.25 mm, Overall Length 24 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.82 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 11.7 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.80
- Package Weight: 0.13
Product info last updated on March 4, 2026 9:17pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
