Coupling, 6 Beam Set Screw, 9mmx9mm MPN:FSMR32-9-9-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7946267

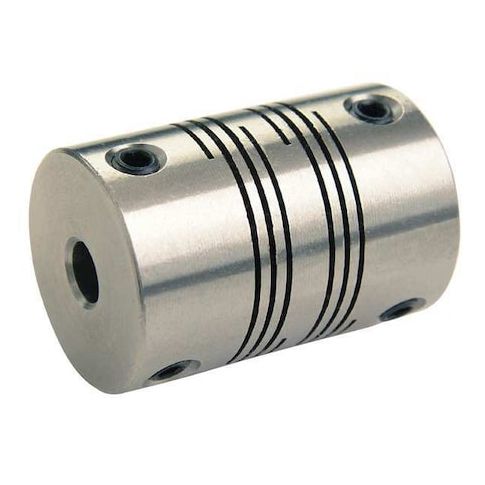

Coupling, 6 Beam Set Screw, 9mmx9mm
The RULAND 6 Beam Set Screw Coupling is a high-performance motion control solution designed for applications requiring precise angular misalignment and high torque transmission. Its stainless steel construction and 9mm bore diameter make it ideal for use in harsh environments and demanding applications such as robotics, medical devices, and aerospace. With a maximum speed of 6,000 RPM and torsional stiffness of 6.67 N-m/Deg, this coupling ensures smooth and reliable operation. Its compact design and set screw locking mechanism provide easy installation and secure shaft alignment, making it a versatile and reliable solution for a wide range of industrial applications.
Top product features:
- Angular misalignment of 3 degrees
- Maximum torque of 16.08 N-m
- Axial motion of 0.25 mm
Top product applications:
- Positioning of a small load on a rotating shaft in a medical device application
- Power transmission in a high-speed machine tool spindle
- Precision measurement and testing in a laboratory setting
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 9 mm, Bore Diameter 2 9 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 16.08 N-m, Axial Motion 0.25 mm, Overall Length 44.5 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 6.67 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 21.4 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.30
- Package Weight: 0.76
Product info last updated on March 20, 2026 12:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
