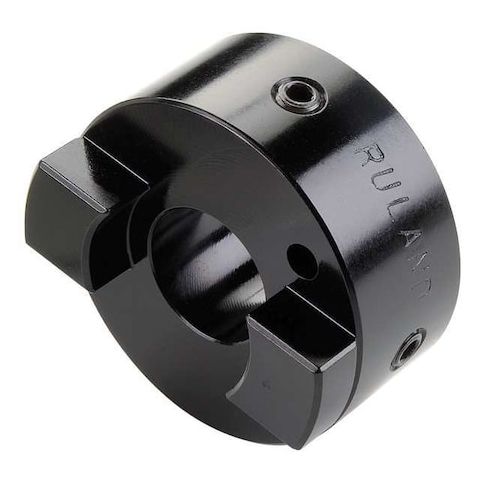

Coupling Hub, Oldham Set Screw, 11mm MPN:MOST41-11-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7921383
Coupling Hub, Oldham Set Screw, 11mm
The RULAND Coupling Hub is a high-performance motion control coupling designed for applications requiring precise angular and axial misalignment. Its 0.5-degree angular misalignment and 0.15mm axial motion capabilities make it ideal for use in precision machinery, robotics, and other high-accuracy applications. The hub's aluminum construction and set screw shaft locking ensure secure and reliable operation up to 4,500 RPM. Suitable for use in a variety of industries, including aerospace, medical, and industrial automation, this coupling hub provides reliable performance and long lifespan, making it an excellent choice for applications demanding high precision and reliability.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexible positioning of connected shafts.
- Axial motion of 0.15 mm enables the hub to absorb vibrations and shocks.
- Set screw shaft locking provides secure attachment of the shaft to the hub.
Top product applications:
- Gearboxes
- Robotics
- Machine Tool Power Transmission
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOST41, Outside Diameter 41.3 mm, Over-Standard Parallel Misalignment 4.13 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 50.8 mm, Hub Material Aluminum, Length through Bore 18 mm, System of Measurement Metric, Bore Diameter 11 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Set Screw, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 4 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.60
- Package Height: 1.20
- Package Weight: 0.15
Product info last updated on May 5, 2026 11:42pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
