Coupling, 4 Beam Clamp, 7mmx7mm MPN:PCMR22-7-7-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7906972

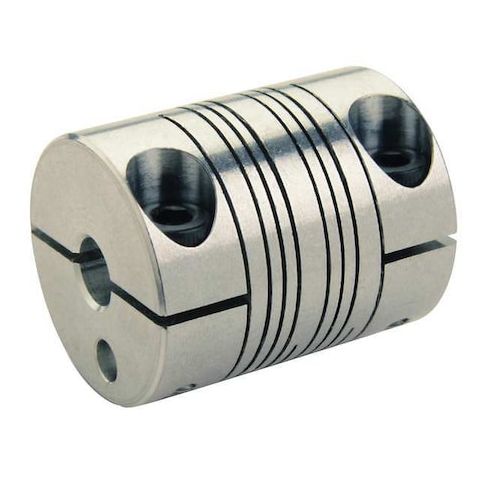

Coupling, 4 Beam Clamp, 7mmx7mm
This Ruland 4 Beam Clamp Coupling is a high-performance motion control coupling designed for applications requiring precise angular misalignment compensation. With a stainless steel construction and clamp-on design, it provides reliable torque transmission and resistance to corrosion. The coupling's 3-degree angular misalignment capability and 0.2mm parallel misalignment make it suitable for use in precision machinery, medical devices, and other applications where accuracy is critical. Its compact size and low weight make it ideal for use in robotics, aerospace, and other high-speed applications, where it can operate at speeds up to 6,000 RPM.
Top product features:
- Angular Misalignment up to 3 degrees
- Maximum Torque of 2.49 N-m
- Torsional Stiffness of 0.84 N-m/Deg
Top product applications:
- Positioning of motors or actuators in medical equipment where precise alignment is critical
- Power transmission in industrial automation systems where high-speed and high-torque applications are required
- Angular motion compensation in robotics or CNC applications where precise control of motion is essential
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 7 mm, Bore Diameter 2 7 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 22.2 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.49 N-m, Axial Motion 0.13 mm, Overall Length 27 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.84 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 12.7 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.20
- Package Weight: 0.20
Product info last updated on February 2, 2026 4:31pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
