Coupling Hub, Oldham Clamp, 15mm MPN:MOCT57-15-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7906333

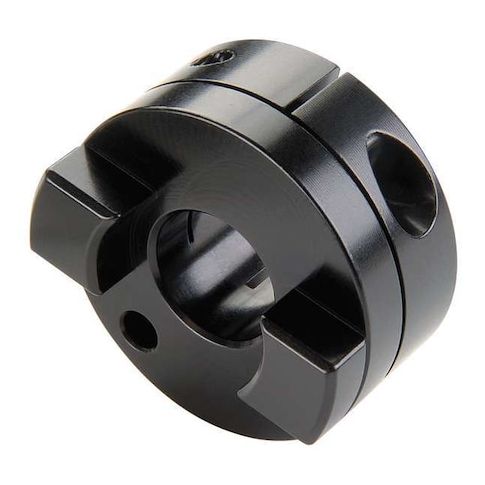

Coupling Hub, Oldham Clamp, 15mm
The RULAND Coupling Hub, Oldham Clamp, 15mm, is a versatile motion control coupling ideal for applications requiring high precision and reliability. Its angular misalignment of 0.5 degrees and axial motion of 0.2 mm enable smooth operation in demanding environments. Suitable for use in medical, laboratory, and industrial equipment, this coupling hub provides a secure and efficient connection between shafts. Its compact design and clamp-on shaft locking system make it easy to install and maintain. With a maximum speed of 4,500 RPM and a lead time of 10 days, this coupling hub is an excellent choice for a wide range of applications.
Top product features:
- Angular misalignment up to 0.5 degrees
- Axial motion up to 0.2 mm
- Clamp-on shaft locking mechanism
Top product applications:
- Gearbox Couplings
- Motor Couplings
- Robot Arm Couplings
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCT51, Outside Diameter 57.2 mm, Over-Standard Parallel Misalignment 5.72 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 78.7 mm, Hub Material Aluminum, Length through Bore 28.7 mm, System of Measurement Metric, Bore Diameter 15 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.30
- Package Weight: 0.49
Product info last updated on February 13, 2026 10:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
