Coupling Hub, Oldham Set Screw, 16mm MPN:MOST41-16-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7882253

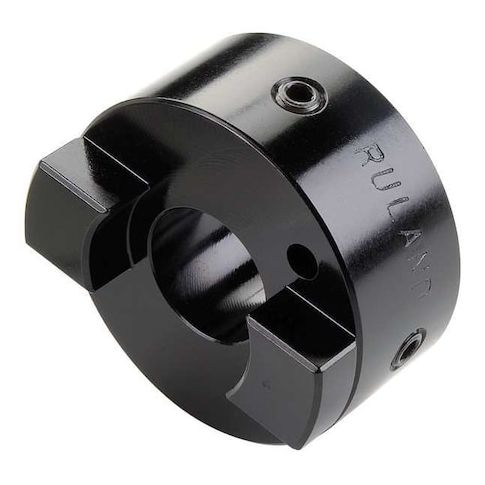

Coupling Hub, Oldham Set Screw, 16mm
The RULAND Coupling Hub is a high-performance motion control component designed for applications requiring precise angular misalignment and axial motion. With a maximum speed of 4,500 RPM and a bore diameter of 16mm, this hub is suitable for use in a variety of industrial settings, including robotics, automation, and machinery manufacturing. Its aluminum construction and set screw shaft locking provide a secure and reliable connection, while its compact size and lightweight design make it easy to integrate into complex systems. Ideal for applications where precision and durability are essential, the RULAND Coupling Hub is a trusted solution for motion control engineers and technicians.
Top product features:
- Angular misalignment capability of 0.5 degrees
- Axial motion capability of 0.15 mm
- Shaft locking mechanism with set screw locking type
Top product applications:
- High-speed machinery applications
- Robotics and automation systems
- Precision gearboxes and motors
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOST41, Outside Diameter 41.3 mm, Over-Standard Parallel Misalignment 4.13 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 50.8 mm, Hub Material Aluminum, Length through Bore 18 mm, System of Measurement Metric, Bore Diameter 16 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Set Screw, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 4 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.70
- Package Weight: 0.20
Product info last updated on February 25, 2026 1:43pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
