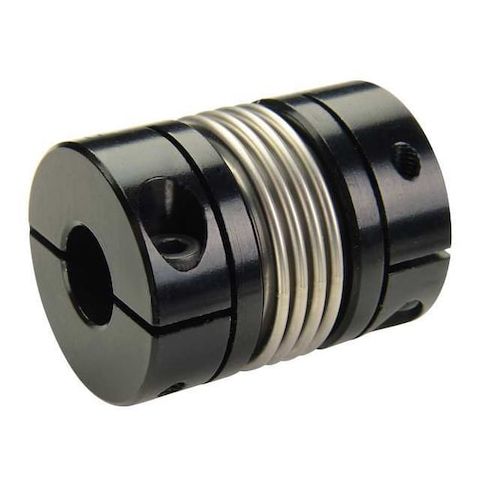

Coupling, Bellows Clamp, 20mmx17mm MPN:MBC51-20-17-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7871281
Coupling, Bellows Clamp, 20mmx17mm
The RULAND 20mmx17mm Bellows Clamp Coupling is a versatile motion control coupling designed for high-speed applications. Its aluminum hubs and stainless steel bellows ensure durability and resistance to corrosion. The clamp-on shaft locking system allows for easy installation and alignment. This coupling is ideal for use in precision machinery, robotics, and medical equipment, where high torque and speed are required. Its compact design and metric measurements make it suitable for a wide range of applications, including servo motors, gearboxes, and other precision motion control systems. It can handle up to 10,000 RPM and 45.2 N-m of torque.
Top product features:
- Motion Control Coupling allows for parallel misalignment up to 0.25 mm.
- Bellows Clamp provides a stainless steel bellows material for durability.
- Clamp On shaft locking type enables easy installation and removal.
Top product applications:
- Motion control in robotics and automation systems
- Gearbox and motor coupling in high-speed machinery
- Precision positioning in medical and laboratory equipment
Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 17 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.44
Product info last updated on February 14, 2026 8:38am UTC
Category: Bearings, V-belts and Power Transmission Equipment
