Coupling, 4 Beam Set Screw, 6mmx6mm MPN:MWS25-6-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7848373
Coupling, 4 Beam Set Screw, 6mmx6mm

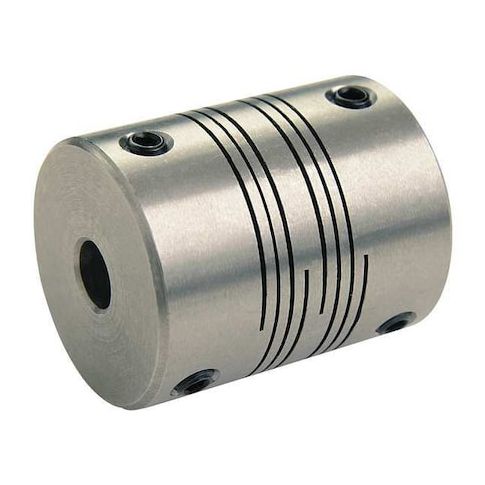

The RULAND 4 Beam Set Screw Coupling is a high-performance motion control coupling designed for precise angular misalignment and high-speed applications. With a maximum speed of 6,000 RPM and maximum torque of 3.42 N-m, this coupling is ideal for use in precision machinery, robotics, and automated systems. Its aluminum construction and set screw shaft locking provide excellent durability and resistance to wear. The coupling's compact design and low axial motion of 0.25 mm make it suitable for applications where space is limited. Perfect for use in industries such as aerospace, medical, and industrial automation.
Top product features:
- Angular misalignment of 3 degrees
- Maximum torque of 3.42 N-m
- Torsional stiffness of 0.82 N-m/Deg
Top product applications:
- Robotics and Automation
- Gearbox and Motor Coupling
- High-Speed Medical Devices
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 6 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.42 N-m, Axial Motion 0.25 mm, Overall Length 24 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.82 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 11.7 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 0.60
- Package Weight: 0.07
Product info last updated on February 11, 2026 2:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
