Coupling, 6 Beam Set Screw, 16mmx15mm MPN:FSMR38-16-15-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7838092

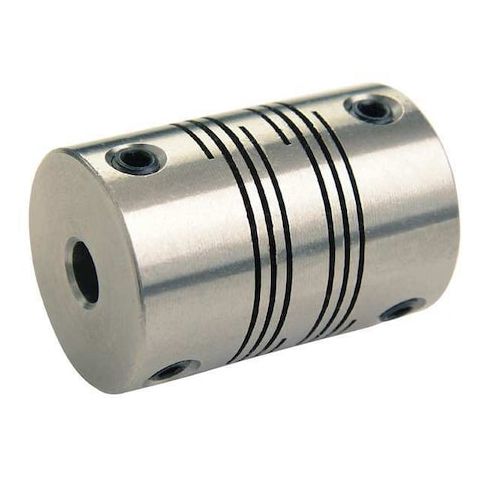

Coupling, 6 Beam Set Screw, 16mmx15mm
The RULAND 6 Beam Set Screw Coupling offers precise motion control and flexibility in a variety of applications. Its angular misalignment of 3 degrees and parallel misalignment of 0.76 mm make it ideal for use in robotic arms, medical equipment, and other precision machinery. The coupling's aluminum construction and set screw shaft locking provide reliable torque transmission and resistance to wear. With a maximum speed of 6,000 RPM and maximum torque of 10.73 N-m, this coupling is suitable for use in a range of industries, including aerospace, medical, and industrial automation. Its compact design and ease of installation make it a convenient choice.
Top product features:
- Angular misalignment of 3 degrees allows for flexibility in shaft positioning.
- Axial motion of 0.38 mm enables the coupling to accommodate slight changes in shaft length.
- Torsional stiffness of 2.56 N-m/Deg helps maintain consistent torque transmission.
Top product applications:
- Robotics and Automation
- Gearbox and Motor Coupling
- High-Speed Power Transmission Systems
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 16 mm, Bore Diameter 2 15 mm, Coupling Material Aluminum, Coupling Outside Diameter 38.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 10.73 N-m, Axial Motion 0.38 mm, Overall Length 57.2 mm, Parallel Misalignment 0.76 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 2.56 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 27.3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 1.50
Product info last updated on March 16, 2026 1:31am UTC
Category: Bearings, V-belts and Power Transmission Equipment
