Coupling, Bellows Clamp, 16mmx15mm MPN:MBC33-16-15-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7817704

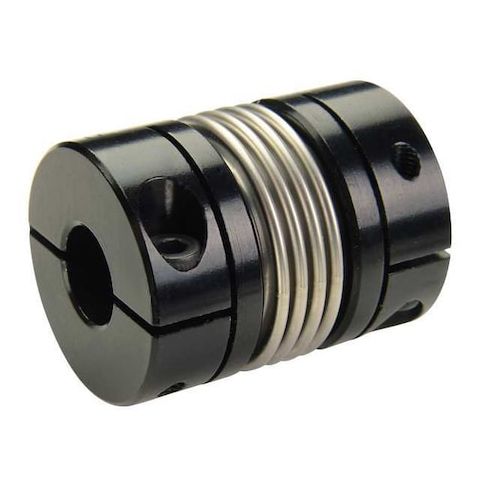

Coupling, Bellows Clamp, 16mmx15mm
This Ruland Motion Control Coupling is designed for applications requiring high precision and flexibility, such as in medical device manufacturing, aerospace, and robotics. Its bellows design allows for up to 0.15mm of parallel misalignment, making it ideal for use in systems with slight shaft offset. The coupling's maximum speed of 10,000 RPM and maximum torque of 13.6 N-m enable it to handle demanding applications. Its compact size and lightweight design make it suitable for use in tight spaces and high-reliability applications. The coupling's aluminum hub and stainless steel bellows ensure durability and resistance to corrosion.
Top product features:
- Coupling allows for parallel misalignment of up to 0.15 mm.
- Bellows clamp design enables flexible motion control.
- Hub material is made of aluminum for durability.
Top product applications:
- Motion control systems for precision machinery
- Robotics and automation applications
- High-speed medical equipment and diagnostic instruments
Motion Control Coupling, Bore Diameter 1 16 mm, Bore Diameter 2 15 mm, Coupling Outside Diameter 33.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 13.6 N-m, Hub Material Aluminum, Overall Length 42.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 33.3 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 20.4 mm, Length Through Bore 2 20.4 mm, Parallel Misalignment 0.15 mm, Bore Type Round, Dynamic Torque Non-Reversing 6.8 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.40
- Package Weight: 0.17
Product info last updated on February 18, 2026 12:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
