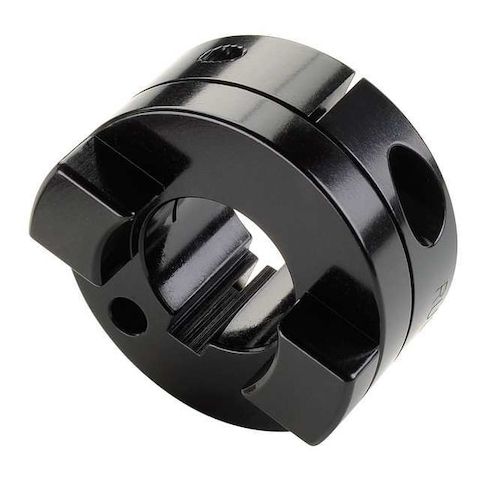

Coupling Hub, Oldham Clamp, 25mm MPN:MOCC51-25-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7808875
Coupling Hub, Oldham Clamp, 25mm
The RULAND Motion Control Coupling Hub is a precision-engineered solution for applications requiring high-performance motion control. Designed for angular misalignment up to 0.5 degrees and axial motion of 0.2 mm, this coupling hub ensures smooth and reliable transmission of power. Suitable for use in machinery, equipment, and systems where precision and durability are essential, such as in robotics, medical devices, and industrial automation. The hub's aluminum construction and clamp-on shaft locking mechanism provide added strength and flexibility. With a maximum speed of 4,500 RPM and a compact design, this coupling hub is an ideal choice for demanding applications.
Top product features:
- Angular Misalignment of 0.5 Degrees provides flexibility in installation and operation
- Axial Motion of 0.2 mm allows for self-centering and compensation for minor shaft misalignment
- Maximum Speed of 4,500 RPM enables high-performance applications
Top product applications:
- Gearbox Couplings
- Pneumatic and Hydraulic Systems
- Robotics and Automation
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCC51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 25 mm, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 3.5 mm, Keyway Width 8 mm, Screw Seating Torque 9.5 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.31
