Clamp Oldham Coupling Hub, 24mm, Aluminium, OD 50.8mm, L 59.7mm MPN:MOCT51-24-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7099047

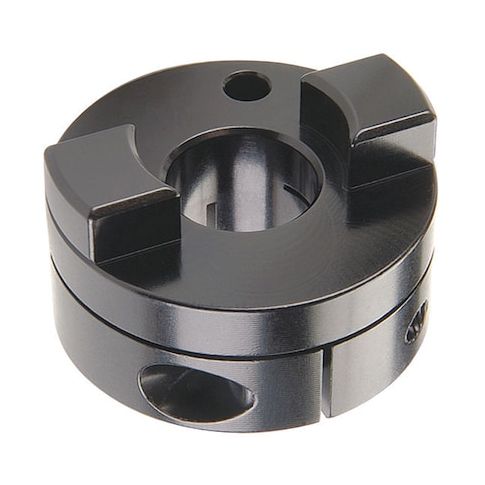

Clamp Oldham Coupling Hub, 24mm, Aluminium, OD 50.8mm, L 59.7mm
The RULAND Clamp Oldham Coupling Hub is a high-performance motion control solution ideal for applications requiring precise angular misalignment and axial motion. With a maximum speed of 4,500 RPM and a bore diameter of 24mm, this hub is suitable for use in a variety of industries, including robotics, aerospace, and medical equipment manufacturing. Its aluminum construction provides durability and resistance to corrosion, while its clamp-on design allows for easy installation and adjustment. The hub's ability to handle angular misalignment of up to 0.5 degrees and axial motion of 0.2mm makes it an excellent choice for applications requiring precise motion control.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexible coupling in applications with slight angular movements.
- Axial motion of 0.2 mm enables the coupling to accommodate minor axial shifts in the shaft.
- The clamp-on shaft locking mechanism provides secure and easy installation.
Top product applications:
- High-speed machinery
- Precision robotics
- Automotive test equipment
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCT51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 24 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.36
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Ethylene thiourea, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on February 7, 2026 11:06pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
