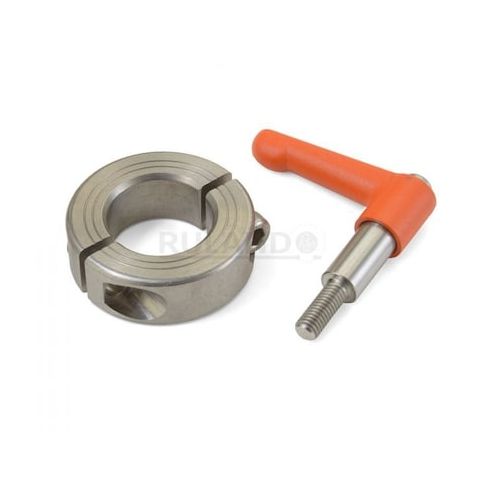

SHAFT COLLAR QUICK CLAMPING MPN:LVO-MSP-23-SS
SHAFT COLLAR QUICK CLAMPING
Easily attach and detach shaft collars with the Ruland Quick Clamping Shaft Collar, ideal for applications where frequent disassembly is required. Made from corrosion-resistant stainless steel, this 2-piece collar provides a secure fit on round bores up to 23mm in diameter. With a screw seating torque of 9.6 N-m, you can be confident in the collar's ability to withstand demanding conditions. Suitable for use in a variety of industries, including aerospace, medical, and industrial equipment, this shaft collar is perfect for applications where quick and easy adjustments are necessary, such as in robotics, machinery, and test equipment.
Top product features:
- Quick clamping mechanism for easy installation and removal
- Made from corrosion-resistant stainless steel for durability and resistance to environmental factors
- Two-piece construction for compact design and ease of assembly
Top product applications:
- Shaft collars are used in conveyor systems to secure and position shafts and axles.
- They are used in machine tools to hold and align shafts, bearings, and other rotating components.
- Shaft collars are used in robotics to secure and position shafts and axles, allowing for precise movement and control.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 23 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.36
Product info last updated on March 3, 2026 8:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
