SHAFT COLLAR QUICK CLAMPING MPN:LVO-MSP-36-A

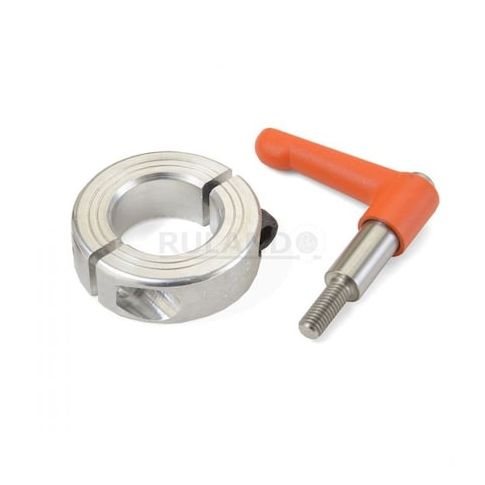

SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a reliable and efficient solution for various industrial applications. This 2-piece aluminum collar features a quick clamping mechanism, allowing for easy installation and removal from round shafts. With a bore diameter of 36mm and outside diameter of 57mm, it provides a secure fit for a range of applications. The collar's durable construction and stainless steel screws ensure a long-lasting and low-maintenance solution. Ideal for use in machinery, automation, and other industrial equipment, the Ruland Quick Clamping Shaft Collar offers a convenient and effective way to manage shafts and improve overall system performance.
Top product features:
- Quick clamping mechanism for easy installation and removal
- Aluminum construction for lightweight and corrosion-resistant properties
- Two-piece collar design for secure and adjustable fit around shafts
Top product applications:
- Shaft collars are used in mechanical applications to secure shafts in place, and this product is suitable for use in applications such as conveyor belt systems.
- This product can be used in machinery applications such as pumps, gearboxes, and other equipment where a secure and adjustable shaft mounting is required.
- The quick clamping feature of this product makes it suitable for use in applications where frequent adjustments are needed, such as in robotic or automated systems.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 36 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.22
Product info last updated on February 6, 2026 2:32am UTC
Category: Bearings, V-belts and Power Transmission Equipment
