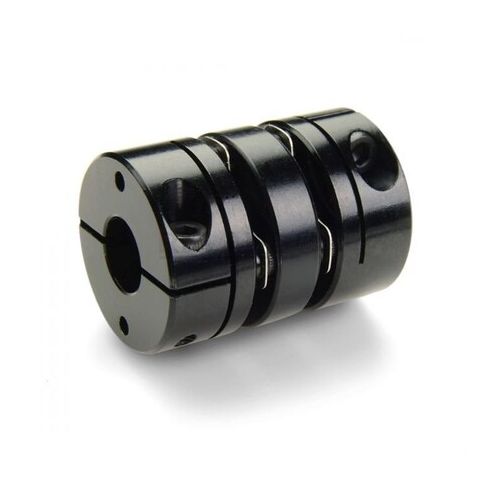

Disc Coupling MPN:MDCD70-35-30-A
Disc Coupling
The RULAND Disc Coupling is a reliable and versatile solution for connecting shafts in various applications. Its unique design allows for angular misalignment of up to 2 degrees, making it ideal for use in machinery and equipment with slight shaft misalignment. The coupling's aluminum hubs and center spacer provide excellent durability and resistance to corrosion. With a dynamic torque capacity of up to 48 N-m, it can handle high-torque applications such as conveyor systems, pumps, and gearboxes. Its compact size and lightweight design make it suitable for a wide range of industries, including aerospace, automotive, and industrial automation.
Top product features:
- Angular misalignment of up to 2 degrees allows for flexibility in installation.
- The coupling can handle axial motion of up to 0.76 mm, reducing the risk of damage or failure.
- Dynamic torque capacity of up to 48 N-m non-reversing and 24 N-m reversing enables the coupling to transmit high forces in various applications.
Top product applications:
- High-speed machinery
- Pumps and compressors
- Generators and motors
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 35 mm, Bore Diameter 2 30 mm, Bore Type Round, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 35 mm, Minimum Bore Diameter 30 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.33
