Bellows Coupling MPN:MBC80-35-25-A

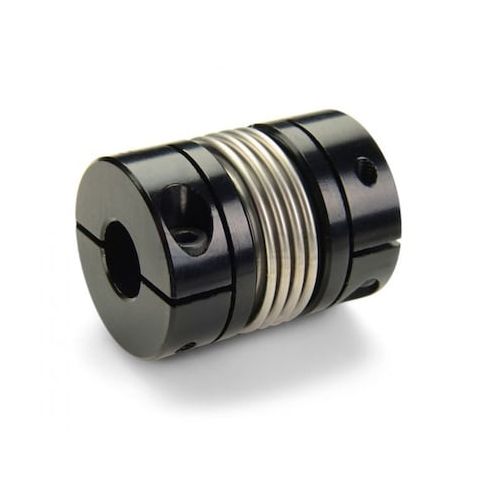

Bellows Coupling
The RULAND Bellows Coupling is a versatile and reliable solution for connecting two shafts in a variety of applications. Its bellows design allows for high-speed operation up to 10,000 RPM and can withstand maximum torques of 152 N-m, making it ideal for use in high-performance machinery and equipment. The coupling's aluminum hub and stainless steel bellows ensure durability and resistance to corrosion. Suitable for use in a range of industries, including aerospace, medical, and industrial automation, this coupling is perfect for applications where precision and reliability are paramount, such as in robotic systems, pumps, and gearboxes.
Top product features:
- Clamp on shaft locking type allows for secure and easy installation
- Stainless steel bellows provides durability and resistance to corrosion
- Maximum speed of 10,000 RPM enables high-performance applications
Top product applications:
- Gearbox and motor applications requiring a compact, high-speed coupling
- Power transmission systems in medical equipment, such as ventilators and dialysis machines
- High-speed machinery, such as centrifuges and air compressors, where parallel misalignment is a concern
Bellows Coupling, Bore Diameter 1 35 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on March 1, 2026 11:16pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
