SHAFT COLLAR QUICK CLAMPING MPN:LV-OF-MCL-16-AN

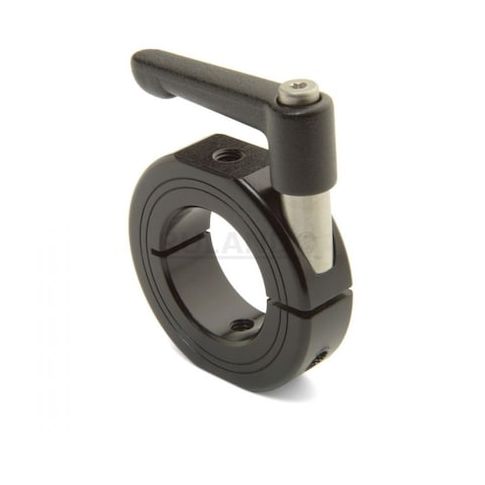

SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a versatile and reliable solution for securing shafts in a variety of applications. Made from corrosion-resistant aluminum, this 1-piece collar features a quick clamping mechanism that allows for easy installation and removal. With a sturdy stainless steel screw and a secure 9.5 N-m screw seating torque, this collar provides reliable performance in demanding environments. Suitable for use in manufacturing, automation, and other industries, the Ruland Quick Clamping Shaft Collar is an ideal choice for applications requiring precise shaft alignment and secure mounting. Its compact size and lightweight design make it perfect for use in a range of machinery and equipment.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar.
- Made from corrosion-resistant aluminum with a stainless steel screw for added durability and resistance to corrosion.
- One-piece design provides a secure and compact construction.
Top product applications:
- Shaft collars are used in applications where a secure and adjustable fit is required.
- They can be used as a coupling to join two shafts together.
- They can also be used as a stop to set a specific length on a shaft.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.12
