SHAFT COLLAR QUICK CLAMPING MPN:LV-MSP-16-A
SHAFT COLLAR QUICK CLAMPING

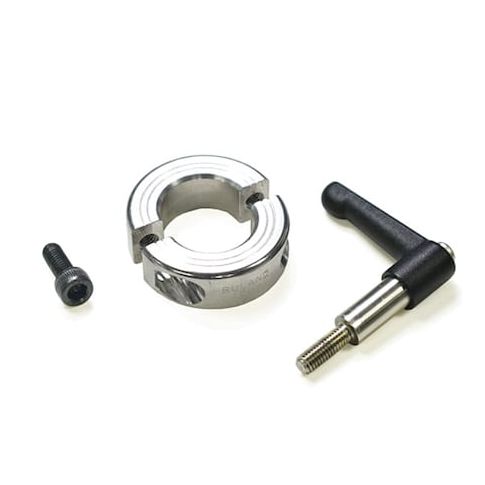

The Ruland Quick Clamping Shaft Collar is a precision-engineered component designed for efficient and secure shaft mounting. Its 2-piece construction and stainless steel screw ensure a reliable and long-lasting fit, even in high-torque applications. With a bore diameter of 16mm and a collar outside diameter of 34mm, this shaft collar is ideal for use in machinery, equipment, and automation systems. Its aluminum construction and metric system make it a versatile choice for various industries, including aerospace, automotive, and medical device manufacturing. Its quick clamping feature allows for easy installation and removal, reducing downtime and increasing productivity.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar.
- Collar is constructed in two pieces for easy assembly and disassembly.
- Screw seating torque is designed to ensure secure and reliable fastening.
Top product applications:
- Precision machinery manufacturing
- Gearbox and transmission assembly
- High-speed rotating equipment construction
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 9.5 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.15
