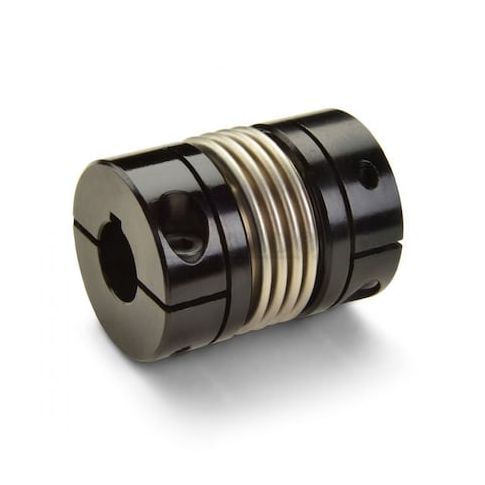

Bellows Coupling MPN:MBCK80-45-25-A
Bellows Coupling
The RULAND Bellows Coupling is a versatile and reliable connection solution for high-speed applications. With a maximum speed of 10,000 RPM and a maximum torque of 152 N-m, this coupling is ideal for use in industrial machinery, robotics, and other high-performance systems. Its stainless steel bellows and aluminum hub provide excellent durability and resistance to corrosion, while its clamp-on shaft locking type ensures easy installation and maintenance. Suitable for applications requiring high precision and reliability, the RULAND Bellows Coupling is a trusted choice for manufacturers and engineers seeking to optimize their systems' performance and efficiency.
Top product features:
- Bellows coupling design allows for parallel misalignment of up to 0.3 mm.
- The coupling features a stainless steel bellows material for durability and resistance to corrosion.
- The clamp-on shaft locking type enables easy installation and secure attachment of shafts.
Top product applications:
- Power transmission in industrial machinery
- Precision instrumentation and medical devices
- High-speed machinery and equipment in the aerospace industry
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
