Bellows Coupling MPN:MBC80-25-25-A

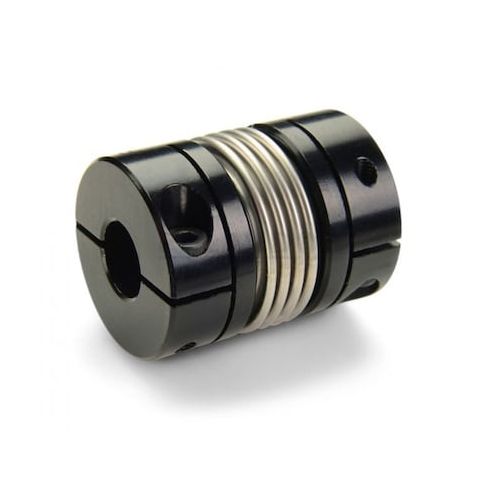

Bellows Coupling
The RULAND Bellows Coupling is a high-performance solution for connecting two shafts in demanding applications. Its stainless steel bellows and aluminum hubs provide exceptional durability and resistance to wear and corrosion. With a maximum speed of 10,000 RPM and torque of 152 N-m, this coupling is ideal for use in high-speed machinery, such as gearboxes, pumps, and motors. Its compact design and clamp-on shaft locking type make it easy to install and maintain. Suitable for a wide range of industries, including aerospace, automotive, and medical, this coupling offers reliable and efficient power transmission in even the most challenging environments.
Top product features:
- Bellows coupling allows for parallel misalignment of up to 0.3 mm.
- Coupling has a dynamic torque non-reversing of 76 N-m.
- Bellows coupling is made with stainless steel material for durability.
Top product applications:
- Power transmission in precision machinery
- High-speed applications in the aerospace industry
- Precision instrumentation in medical devices
Bellows Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on February 25, 2026 4:34pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
