SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-23-A
SHAFT COLLAR QUICK CLAMPING

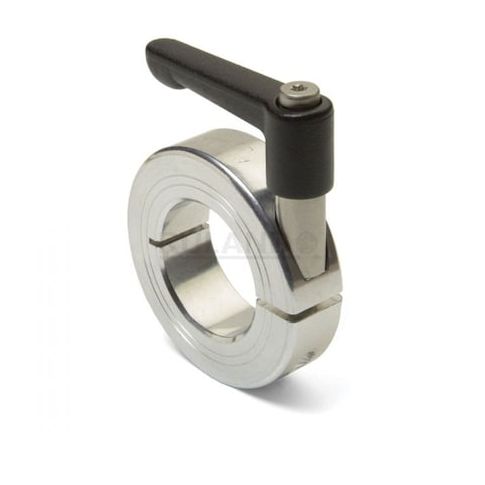

The Ruland Quick Clamping Shaft Collar is a versatile and efficient solution for various industrial applications. Its aluminum construction and stainless steel screw ensure durability and resistance to corrosion. With a bore diameter of 23mm and a collar outside diameter of 45mm, this shaft collar is ideal for use in machinery, equipment, and automation systems. Its quick clamping feature allows for easy installation and removal, reducing downtime and increasing productivity. Suitable for use in a range of industries, including aerospace, automotive, and manufacturing, this shaft collar offers a reliable and cost-effective solution for secure and precise shaft mounting.
Top product features:
- Quick clamping allows for easy installation and removal of the shaft collar.
- The collar is constructed as a single piece, providing a solid and durable design.
- The screw seating torque of 16 N-m ensures a secure and reliable connection.
Top product applications:
- Shaft collars are commonly used in conveyor systems to secure and position shafts in various applications.
- They are often used in CNC machines to hold and position shafts for machining operations.
- Shaft collars are used in robotics to secure and position shafts that drive robotic arms and other mechanical components.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 23 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on April 29, 2026 11:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
