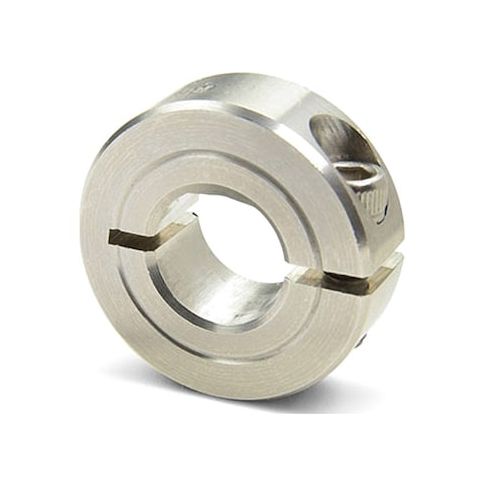

SHAFT COLLAR D-BORE MPN:MCLD-20-SS
SHAFT COLLAR D-BORE
The Ruland D-Bore Shaft Collar is a high-quality, 1-piece stainless steel collar designed for precise shaft alignment and secure positioning. With a bore diameter of 20 mm and a collar outside diameter of 40 mm, this collar is ideal for applications where a smooth, interference-free fit is critical. Its compact design and low profile make it perfect for use in tight spaces, while its stainless steel construction ensures durability and resistance to corrosion. Suitable for use in a variety of industries, including aerospace, medical, and industrial automation, this collar provides a reliable solution for shaft mounting and positioning applications.
Top product features:
- D-Bore design allows for easy installation and removal of the shaft collar
- Stainless Steel construction provides high resistance to corrosion and wear
- One-Piece construction provides a compact and rigid design
Top product applications:
- Shaft collars are commonly used in conveyor belt systems to secure and position pulleys and other components.
- They are also used in robotics and automation to attach and position mechanical components such as gears and motors.
- Shaft collars are used in power transmission applications to secure and position shafts and axles in mechanical systems.
D-Bore Shaft Collar, System of Measurement Metric, Bore Type D, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat 0.74 mm, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.24
Product info last updated on February 24, 2026 11:56pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
