Shaft Collar, 1pc Clamp, Bore 1.0000", OD 45mm, Anodized Aluminum MPN:MCL-16E-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3404128

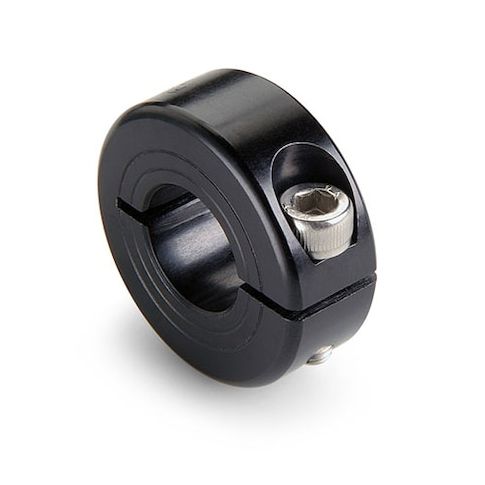

Shaft Collar, 1pc Clamp, Bore 1.0000", OD 45mm, Anodized Aluminum
The Ruland shaft collar is a precision-engineered component ideal for applications requiring high accuracy and reliability. Its infinitely adjustable design allows for secure positioning and alignment of components, while its high-strength anodized aluminum construction provides excellent corrosion resistance. Suitable for use as a load-bearing face, mechanical stop, or component alignment tool, this shaft collar is particularly useful in industries such as aerospace, medical devices, and precision machinery. Its tightly controlled face-to-bore perpendicularity ensures optimal performance in demanding applications. With a fine burr-free finish and stainless steel hardware, this shaft collar is designed to provide long-lasting reliability.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The collar has a fine burr-free finish for light corrosion resistance.
- Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power.
Top product applications:
- Shaft alignment in precision machinery
- Load bearing face in robotic arms
- Mechanical stop in conveyor systems
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 1.0000" bore, 45mm OD, and 15mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 6, 2026 5:02pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
